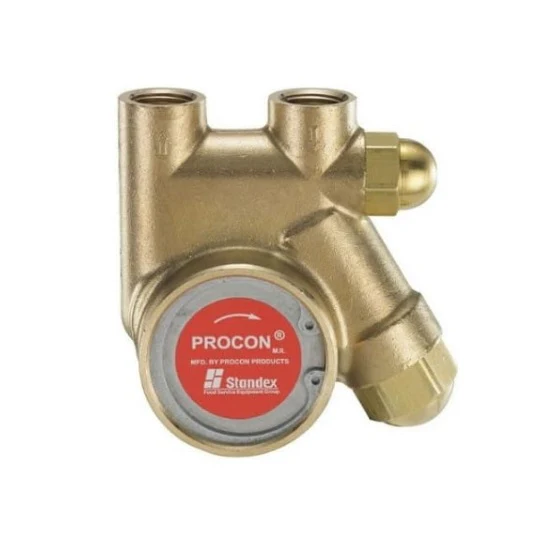

Procon (101A100F11BC) 100 GPH Brass Pump with Integral Relief Valve
Procon 101A100F11BC 100 GPH Brass Pump with Integral Relief Valve
Rotary Vane Pressure Boosting
Feed Water Entry
Municipal or pre-filtered water enters the pump inlet at existing line pressure, typically 30-60 PSI, flowing into the rotary vane chamber.
Vane Rotation
Brass rotary vanes spin within the pump housing, creating positive displacement that boosts pressure to 100-150 PSI for optimal RO membrane performance.
Integral Relief Valve
Built-in pressure relief automatically opens if system pressure exceeds safe limits, recirculating water internally without requiring external bypass lines or valves.
Pressurized Output
Boosted feed water exits the discharge port at up to 100 gallons per hour, delivering the pressure needed to push water through RO membranes efficiently.
System Requirements
The Procon 101A100F11BC is engineered for commercial reverse osmosis systems requiring pressure boosting from 30-60 PSI municipal supply to 100-150 PSI feed pressure. Compatible with systems using 1812, 2012, 2540, 4040, and larger membrane formats. Requires 115V power supply and standard 3/8-inch or 1/2-inch NPT fittings. Commonly used in restaurant ice machines, water stores, car wash systems, and residential whole-house RO installations where incoming pressure is below 60 PSI. The brass construction resists corrosion in potable water applications. Mount in horizontal or vertical orientation with pump head accessible for service. Not for use with hot water or aggressive chemicals.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Procon (101A100F11BC) 100 GPH Brass Pump with Integral Relief Valve
Procon (101A100F11BC) 100 GPH Brass Pump with Integral Relief Valve
Procon 101A100F11BC 100 GPH Brass Pump with Integral Relief Valve
Rotary Vane Pressure Boosting
Feed Water Entry
Municipal or pre-filtered water enters the pump inlet at existing line pressure, typically 30-60 PSI, flowing into the rotary vane chamber.
Vane Rotation
Brass rotary vanes spin within the pump housing, creating positive displacement that boosts pressure to 100-150 PSI for optimal RO membrane performance.
Integral Relief Valve
Built-in pressure relief automatically opens if system pressure exceeds safe limits, recirculating water internally without requiring external bypass lines or valves.
Pressurized Output
Boosted feed water exits the discharge port at up to 100 gallons per hour, delivering the pressure needed to push water through RO membranes efficiently.
System Requirements
The Procon 101A100F11BC is engineered for commercial reverse osmosis systems requiring pressure boosting from 30-60 PSI municipal supply to 100-150 PSI feed pressure. Compatible with systems using 1812, 2012, 2540, 4040, and larger membrane formats. Requires 115V power supply and standard 3/8-inch or 1/2-inch NPT fittings. Commonly used in restaurant ice machines, water stores, car wash systems, and residential whole-house RO installations where incoming pressure is below 60 PSI. The brass construction resists corrosion in potable water applications. Mount in horizontal or vertical orientation with pump head accessible for service. Not for use with hot water or aggressive chemicals.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Procon 101A100F11BC 100 GPH Brass Pump with Integral Relief Valve
Rotary Vane Pressure Boosting
Feed Water Entry
Municipal or pre-filtered water enters the pump inlet at existing line pressure, typically 30-60 PSI, flowing into the rotary vane chamber.
Vane Rotation
Brass rotary vanes spin within the pump housing, creating positive displacement that boosts pressure to 100-150 PSI for optimal RO membrane performance.
Integral Relief Valve
Built-in pressure relief automatically opens if system pressure exceeds safe limits, recirculating water internally without requiring external bypass lines or valves.
Pressurized Output
Boosted feed water exits the discharge port at up to 100 gallons per hour, delivering the pressure needed to push water through RO membranes efficiently.
System Requirements
The Procon 101A100F11BC is engineered for commercial reverse osmosis systems requiring pressure boosting from 30-60 PSI municipal supply to 100-150 PSI feed pressure. Compatible with systems using 1812, 2012, 2540, 4040, and larger membrane formats. Requires 115V power supply and standard 3/8-inch or 1/2-inch NPT fittings. Commonly used in restaurant ice machines, water stores, car wash systems, and residential whole-house RO installations where incoming pressure is below 60 PSI. The brass construction resists corrosion in potable water applications. Mount in horizontal or vertical orientation with pump head accessible for service. Not for use with hot water or aggressive chemicals.
