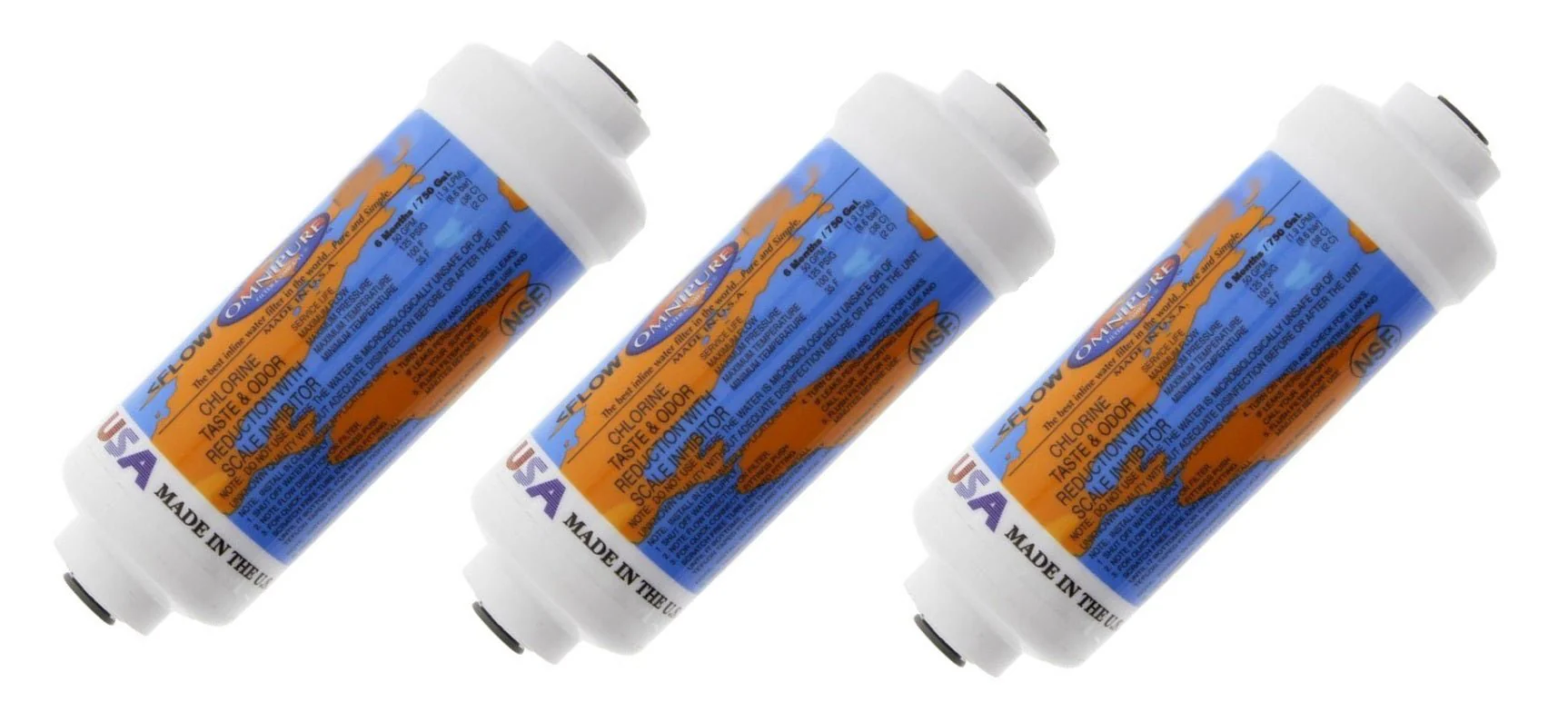

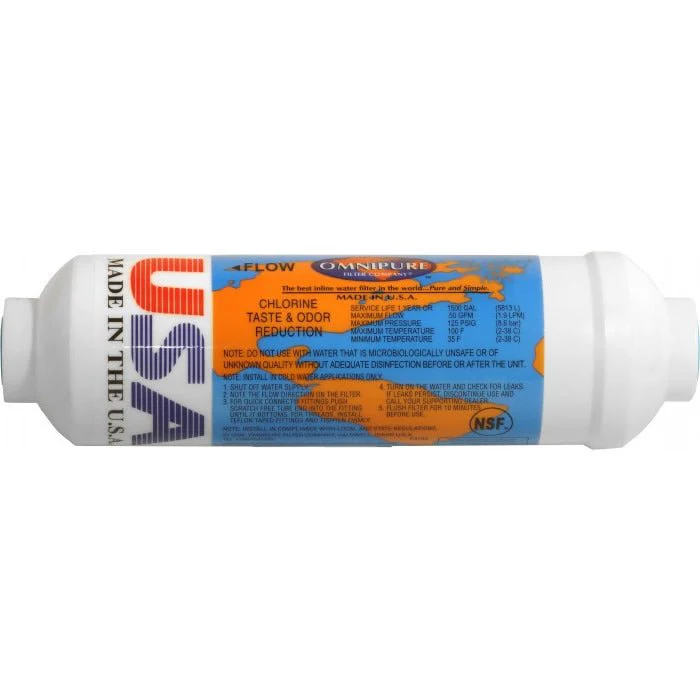

Omnipure - CL6ROT33 - 6" x 2" T40 GAC Acid Washed Coconut Inline Filter
CL6ROT33 Technical Details
| Dimensions | 6" L x 2" W |
| Media Type | T40 GAC (Granular Activated Carbon), Acid Washed Coconut Shell |
| Filtration | 5 Micron Nominal |
| Flow Rate | 0.5 GPM |
| Service Life | 1000 Gallons or 1 Year |
| Max Pressure | 125 PSI |
| Max Temperature | 100°F |
| Connection Size | 0.375" Female Thread (3/8" NPT) |
Setup Guidelines
- Verify NPT thread size using the measurement guide: 3/8" NPT measures approximately 0.675" on a ruler, not 0.375"
- Install inline with flow direction arrow pointing toward dispensing point or RO membrane
- Flush filter for 5 minutes at low pressure before use to remove carbon fines
- Replace every 1000 gallons or 12 months, whichever comes first
Applications & Interchangeability
The CL6ROT33 fits most residential and commercial applications including reverse osmosis systems, ice makers, beverage dispensers, water coolers, and under-sink drinking water systems with 3/8" NPT connections. This model is interchangeable with other Omnipure T28, T33, and T40 carbon filters of the same dimensions. Also known as CL6ROT33-A, CL6ROT33-B, and CL6ROT33-C depending on thread configuration.
