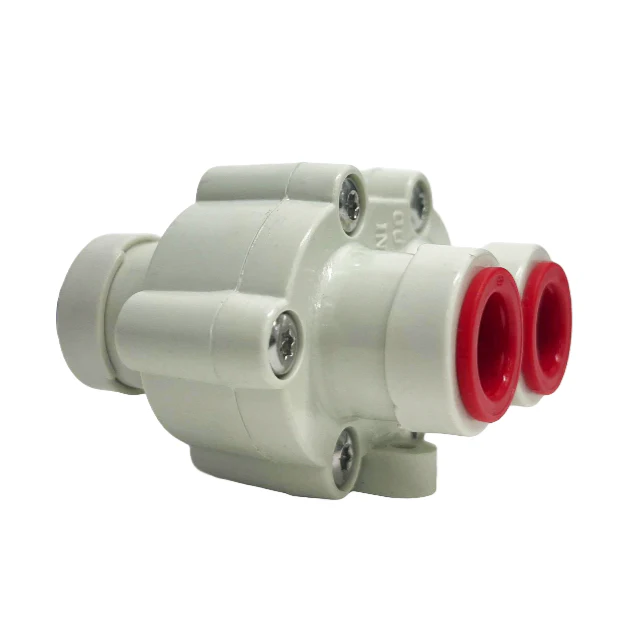

Hydronamic (ASV-300) Auto Shut Off Valve with 3/8" Quick Connect Fittings White
ASV-300 with 3/8" Quick Connect Fittings
Gold Seal certified automatic shut-off valve for reverse osmosis systems with tool-free quick-connect fittings
The ASV-300 automatically shuts off feed water when tank pressure reaches 60% of line pressure, preventing system over-pressurization and water waste. Compact design integrates four 3/8" quick-connect fittings with clearly labeled ports for foolproof installation in residential and light commercial RO systems.
Automatic Pressure Control
Automatic Shut-Off
Closes feed water supply when tank reaches 60% of line pressure, protecting membrane and preventing backpressure damage
Quick-Connect Fittings
Four integrated 3/8" push-to-connect ports eliminate the need for tools, compression fittings, or thread sealant
WQA Gold Seal
Certified by Water Quality Association for material safety and structural integrity in potable water applications
Compact Design
Measures just 2½" × 1¾" × 1½", fits easily in tight installation spaces without compromising flow performance
Labeled Ports
IN, OUT, and TANK markings molded into housing eliminate guesswork during installation and maintenance
Durable ABS Plastic
White food-grade ABS construction resists corrosion, thermal stress, and chemical degradation over years of service
Technical Details
| Part Number | ASV-300 |
| Connections | Four 3/8" quick-connect (push-to-connect) |
| Shut-Off Point | 60% of line/feed pressure |
| Material | ABS plastic (white) |
| Dimensions | 2½" L × 1¾" W × 1½" D |
| Certification | WQA Gold Seal |
Connection Guide
High Pressure Side (marked IN/OUT): Connect prefilter outlet to IN port. Connect OUT port to membrane inlet. Low Pressure Side (marked TANK): Connect product water outlet from membrane housing center port to either TANK fitting. Connect opposite TANK fitting to storage tank inlet. All connections are tool-free push-to-connect with 3/8" tubing.
System Integration
The ASV-300 is compatible with residential and light commercial reverse osmosis systems using 3/8" tubing connections. Standard component in under-sink RO systems with pressurized storage tanks ranging from 2 to 14 gallons. Works with all membrane types including TFC, CTA, and high-rejection membranes at line pressures from 40 to 100 PSI.
The ASV-300 has earned WQA Gold Seal certification for material safety and structural integrity, meeting NSF standards for use in potable water systems.
